MAC CONFIGURATION http://www.netside.net/mac_config.html
------------------------------------------------------------------------
Configuring your Mac for NetSide
MacTCP
The first step in configuring your Macintosh for NetSide is to
configure MacTCP. If you do not have a MacTCP control panel listed in your
Control Panels, you need to obtain MacTCP.
Instructions:
- Open the Control Panels folder. This can be found either in your System
Folder, or under the Apple Menu in the upper left-hand corner of your
screen.
- Highlight the PPP icon in the MacTCP window, and click on "More". If
you do not have the PPP icon listed, you can obtain a copy of FreePPP
by downloading the files under the
PPP
directory from the NetSide FTP site.

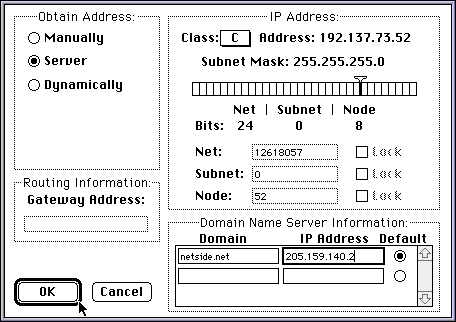

- In the upper left hand window, labelled "Obtain Address:", select the
entry "Server".
- In the upper right hand window, labelled "IP Address:", click on the
letter beside the word "Class" and select "C".
- In the lower right hand window, labelled "Domain Name Server
information", you will want to enter the domain name of netside.net in
the left hand text box, and the number 205.159.140.2 in the right hand
box. Click on the button all the way to the right, labelled "default".
ConfigPPP
[download MacPPP/FreePPP]
Configuring the version of MacPPP contained within the software package
which can be downloaded directly from the NetSide FTP site is made slightly more
complicated by the necessity of the connect script.
- Create a PPP server called "netside". If there is already a
server with this name, skip this step. If not, simply click on "new",
and name the server as "netside".
- Click on Config.
- Set the modem port speed to 38400.
- Set Hardware Flow Control to CTS & RTS (DTR).
- Set the phone number to (531-2929)
- Set your intialization string to whatever is recommended by your
modem's manufacturer, or consult
this list, as recommended by Adam
Engst, author of The Internet Starter Kit for Macintosh

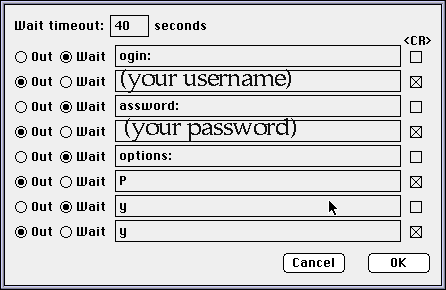

- Click on Connect Script.
Enter the following, with each line here equal to one line of the
script:
- click on "wait", enter the text ogin:
- click on "out", enter your own username, as assigned to you by
NetSide. Click on the "CR" box all the way to the right.
- click on "wait", enter the text assword:
- click on "out", enter your actual password. Click on the "CR" box all
the way to the right.
- click on "wait", enter the text options:
- click on "out", enter the text P. Click on the "CR" box all the way
to the right
- click on "wait", enter the text y
- click on "out", enter the text y. Click on the "CR" box all the way
to the right
- Click on done
- Click on OK
Getting started
- Restart your machine for the changes to take effect.
- Choose the Config PPP control panel,
- Click on Open.
- Start your application of choice, and enjoy ...
- To close, simply open the ConfigPPP control panel and click on Close.
Other Applications
You can download the latest Netscape Navigator software directly
from their official site:
[Download Netscape Software]
Other Internet applications for your Macintosh can be obtained from the
NetSide FTP site.
Obtaining MacTCP
To obtain MacTCP, you must either:
- Have Macintosh System Software version 7.5 or 7.5.1. Macintosh System
7.5.2 included with the 7500, 8500, and 9500 PCI-based PowerMacs does
not come with the MacTCP control panel.
- Purchase a copy of the MacTCP control panel. To obtain MacTCP in this
fashion, you can either contact
Apple Computer directly, and buy the TCP
Connection Pack, or (less expensively) purchase any of a number of
software/book combinations. Northwest Link recommends the comprehensive
and well-written Internet Starter Kit for the Macintosh, which includes
MacTCP 2.0.4.
System 7.5.2 Note: if you have system 7.5.2, the TCP/IP control panel is not
compatible with current implementations of MacPPP and its derivatives,
and/or InterSLIP or MacSLIP. To use these control panels/connection
protocols, you must remove the TCP/IP control panels and replace it with
the MacTCP control panel from System 7.5.1.
Special thanks go to George Milhet
(gmilhet@netside.net)
for providing these instructions.
